Beschrijving

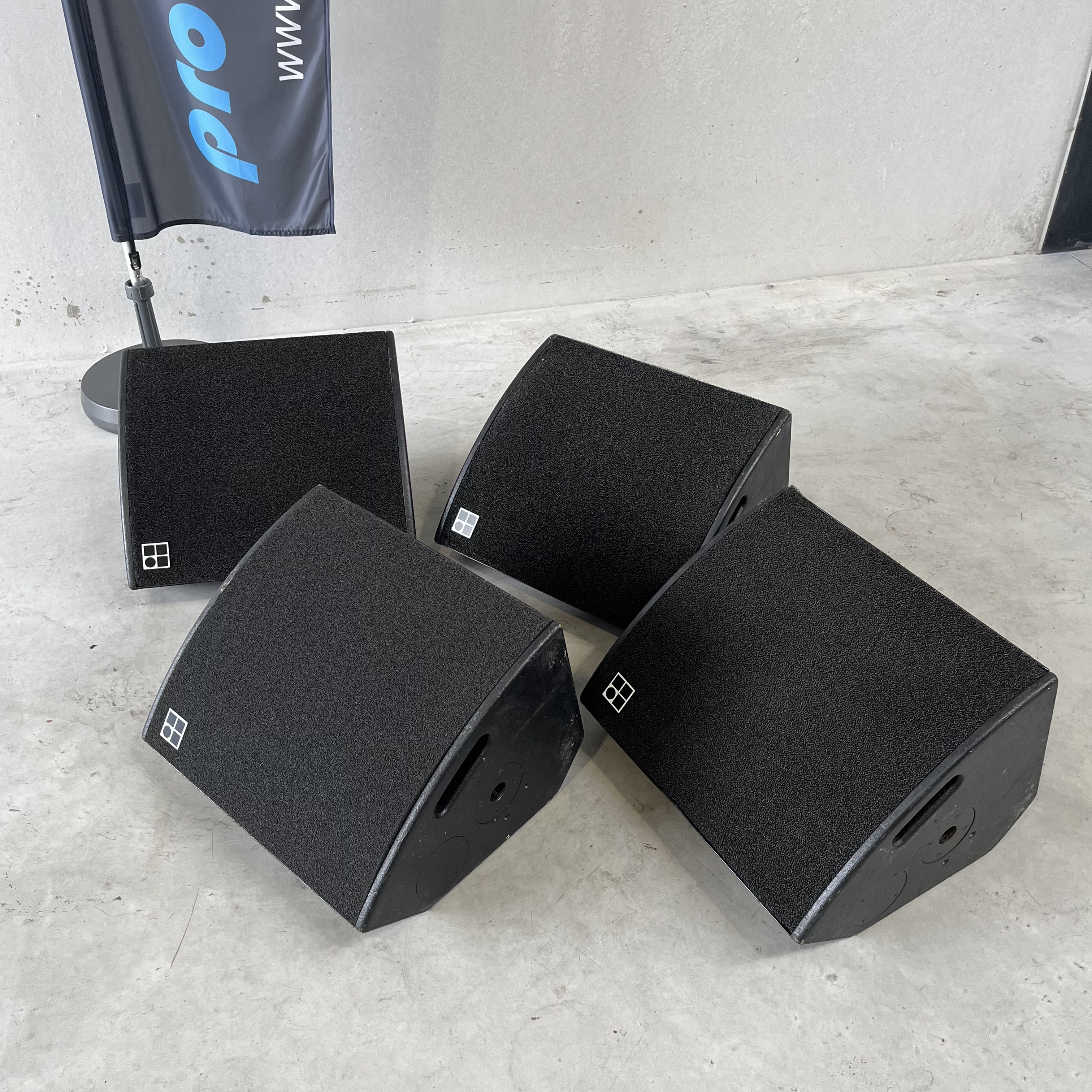

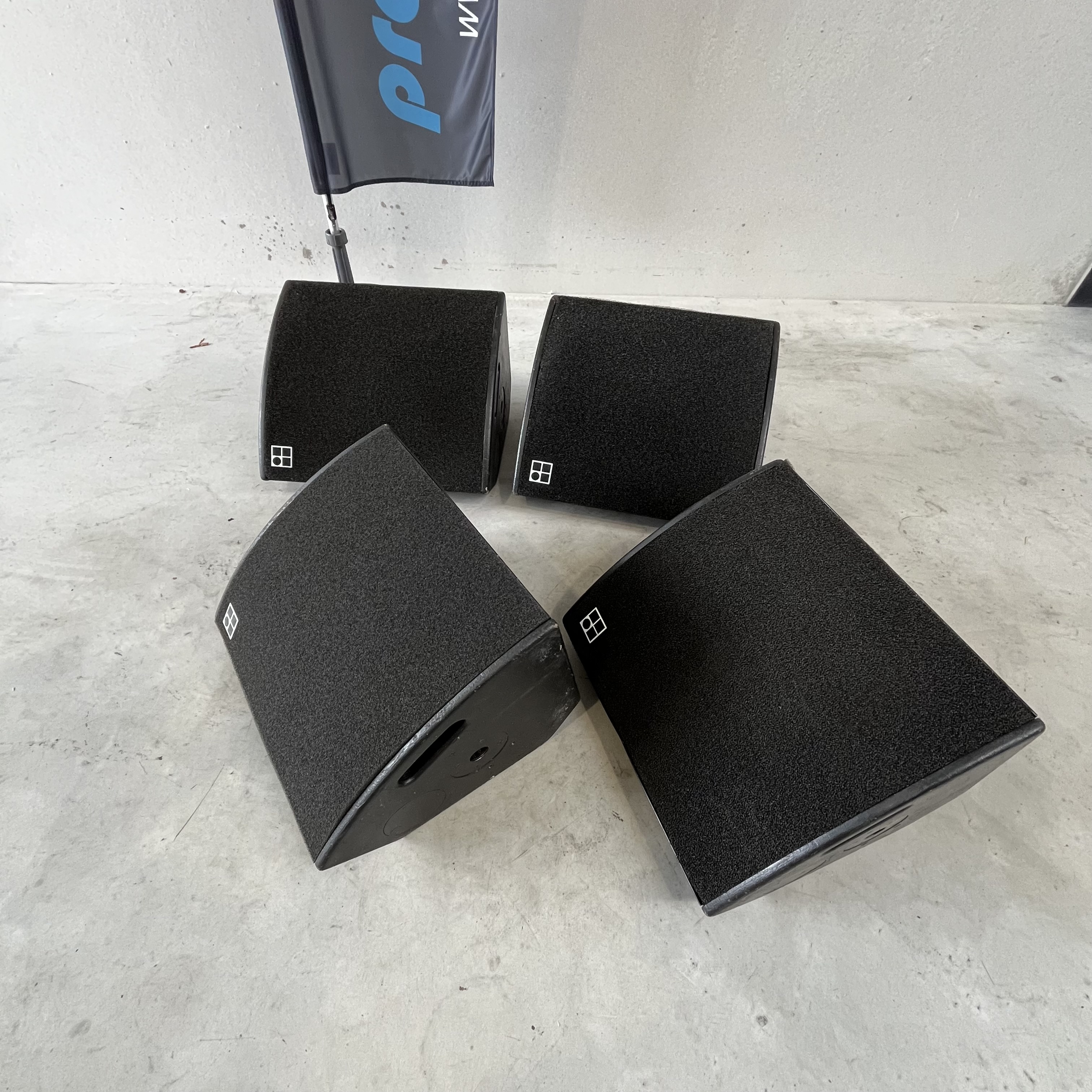

4 pieces available

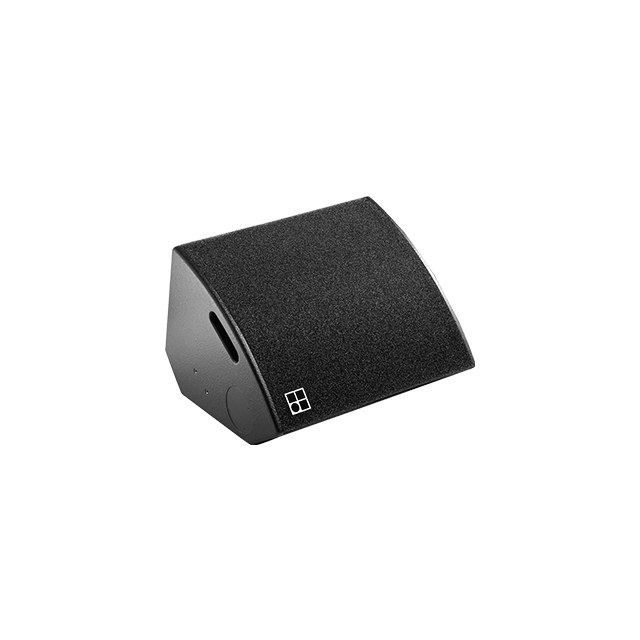

The d&b MAX15 is a premium 2-way, full-range coaxial loudspeaker designed for exceptionally clear vocal presence, feedback stability, and flexible use as a stage monitor or compact PA solution. Due to its coaxial driver arrangement, the MAX15 achieves a remarkably compact, low-height form factor while preserving wide bandwidth and consistent dispersion.
⸻
Key Features & Benefits
- Driver configuration: 15″ low-frequency driver with a coaxially mounted 2″ (or compression) high-frequency driver — delivering coherent point-source sound.
- Wide frequency range: –5 dB response from ≈ 55 Hz up to 18 kHz, ensuring full-range coverage for vocals, instruments, and monitoring duties.
- High output / sensitivity: Maximum sound pressure level (SPL) in passive mode reaches about 135 dB @ 1 m. In active/dB-controlled modes, up to 136 dB SPL is achievable (depending on amplifier/processor).
- Dispersion pattern: Conical 60° coverage (i.e. 60° full-angle dispersion) for fairly wide and even coverage in both horizontal and vertical planes.
- Robust construction: Built with marine-grade plywood, impact-resistant paint finish, onboard handles, and M10 threaded inserts.
- Compact footprint: Measures approximately 392 mm × 580 mm × 507 mm (H × W × D) and weighs about 26 kg.
