Description

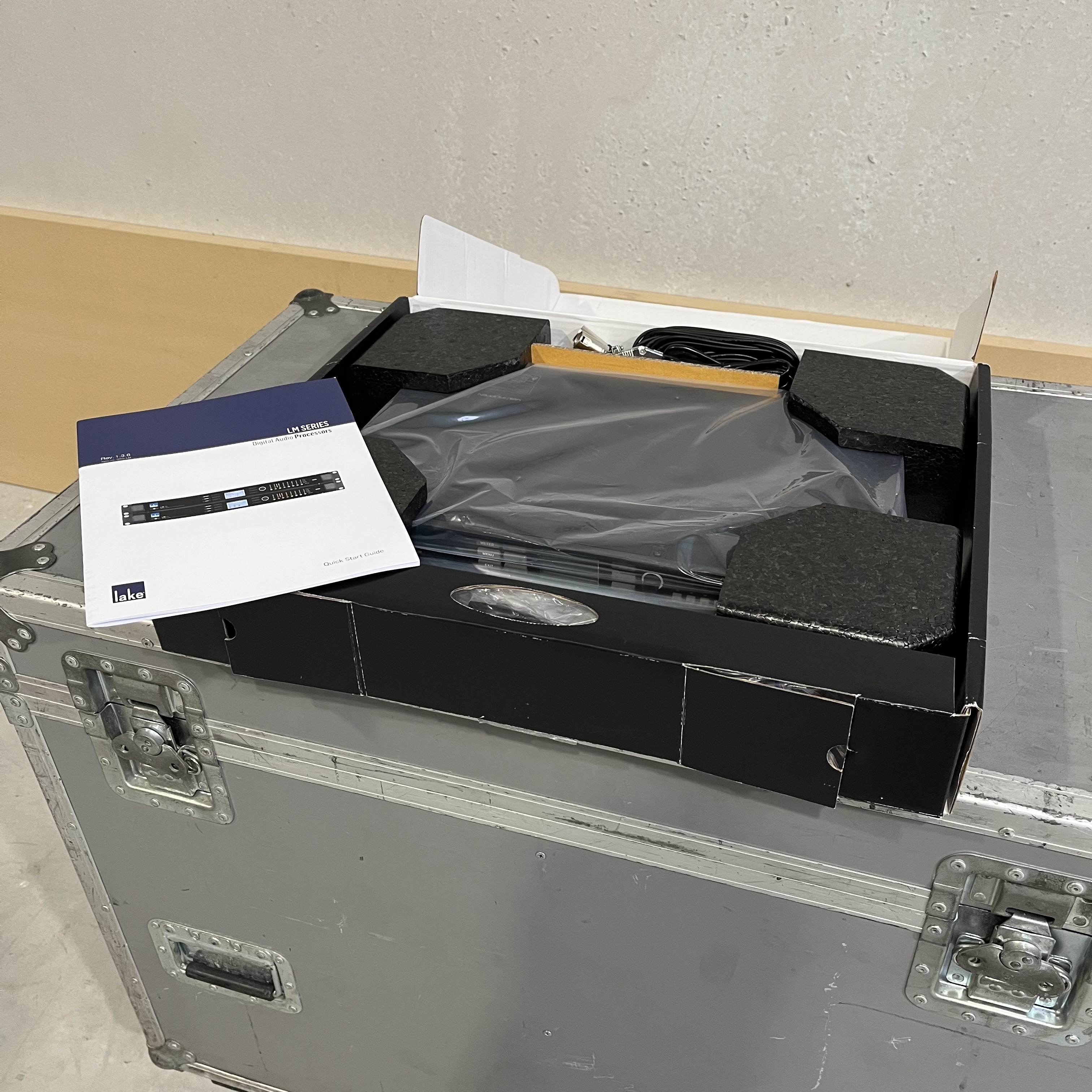

EX. DEMO - 1 piece available
The Lake LM44 is a high-performance 4-in / 4-out digital audio system processor, designed for precision control, loudspeaker management, and seamless system integration. Operating as either a Mesa (4×4) system EQ processor or a Contour (2×6) crossover module, it delivers ultimate flexibility in touring, installation, and live sound environments.

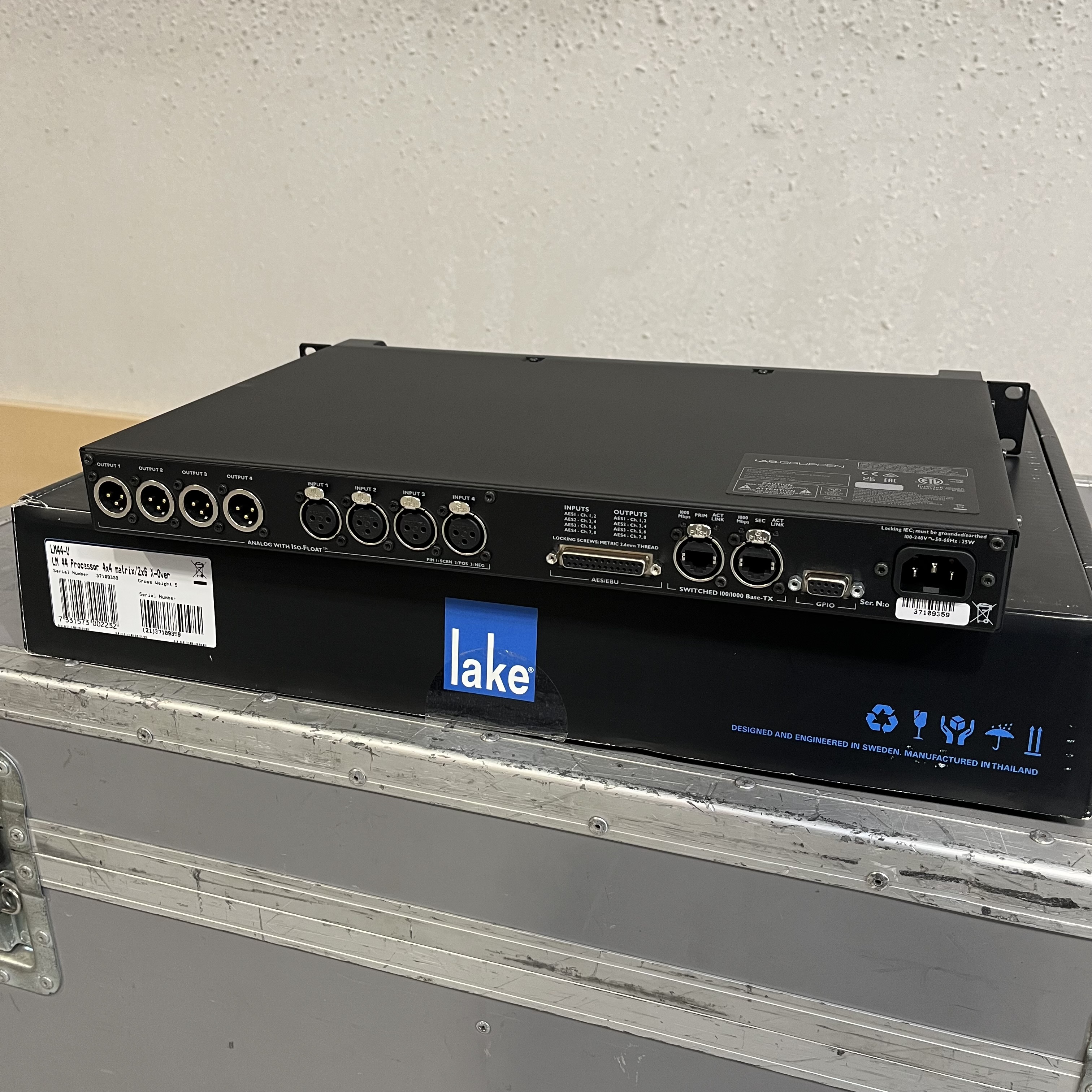

It features analog, AES3, and Dante networking with dual-redundant EtherCON ports, offering up to 4 analog inputs, 8 AES inputs, and 8 Dante outputs. With input failover routing, modules can bypass DSP for pass-through operation, and the unit uses 32-bit floating-point processing at a 96 kHz sample rate. Powerful Raised Cosine EQ, linear-phase crossovers, LimiterMax peak/RMS limiting, and up to 2 seconds of delay per channel ensure exceptional control and audio quality.
The Lake LM44 digital processor provides ultra-low latency — as low as 0.158 ms in pass-through mode — making it ideal for time-critical systems. It integrates seamlessly via Lake Controller software, supports GPIO for external control, includes a daylight-readable front LCD, dedicated mute buttons, and user presets. Rackmount in 1U format, weighing just 5 kg, it is compact, reliable, and network-ready for any professional audio setup.
